Marlin & Tuna Reel is specially designed for big marlin and tuna fishing.
M & T reel has very high level technology of motor sports racing. |
This reel is manufactured by Ken Matsuura Racing Service Co.,Ltd. Japan
who has the most advanced engineering in the field of motor car and cycle
racing.
|
|
| "R.D.S. Rolling Drag System "
|
| Drag system has special taper bearing and has no disc. |
|
| Long durability and efficient radiation system. |
|
| Constant drag tension at striking fish. |
|
| Stable drag tension against high and low line speed. |
|
| No wearing parts -- long durability. |
|
| Perfect anti-water tight design. |
|
| Separate design between spool and drag system -- Efficie |
|
|
 |
|
|
| Comparison between R.D.S. and disc type |
 |
R.D.S. keep constant drag power.Disc type has overshoot at striking position and increase drag power when line decrease i.e. unstable drag power. |
|
|
| M&T 80S Custom |
|
|
| Standerd specification. |
|
| R.D.S. Rolling Drag System. |
|
| Easy removal of spool by hand. |
|
| Easy removal of handle by hand. |
|
| Left side drag lever. |
|
| Two speed system. |
|
| All machine cut body. |
|
| Swelled body. |
|
| Stainless rod clump. |
|
| Handle 100 mm |
|
| Drag pitch 1 kg. |
|
| Aluminum spool. |
|
|
| Optional
parts. |
|
| Aluminum spool 80s |
| Aluminum spool 50s |
| Rod clump for UB6 |
| Drag pitch 1.5 kg |
| Stopper at striking position. |
| Name plate of vessel or owner. |
|
 |
Line Capacity
1000m/80lb 700m/130lb
Gera Ratio
high 1.7:1 Low 1.5:1
Weight
3100g |
|
|
|
| M&T 50S Custom |
|
|
 |
Line Capacity
1000m/50lb 650m/80lb
Gera Ratio
high 3.3:1 Low 1.5:1
Weight
2800g |
|
|
|
 |

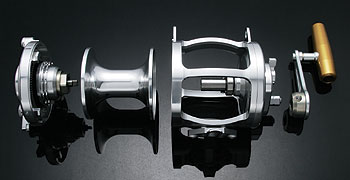

Spool and Handle
Easily remove by hand |
|
 |
|
Left side plate lever drag
Opposite side of handle |
Tow speed gear
Easy selection of higgh
and low speed gear |
|
 |
 |
|
Aluminun spool |
|
|
 |
|
 |
Blue fin tuna
fished by commercial fisherman |
|
Blue marlin
fished by sports fishreman |
|
